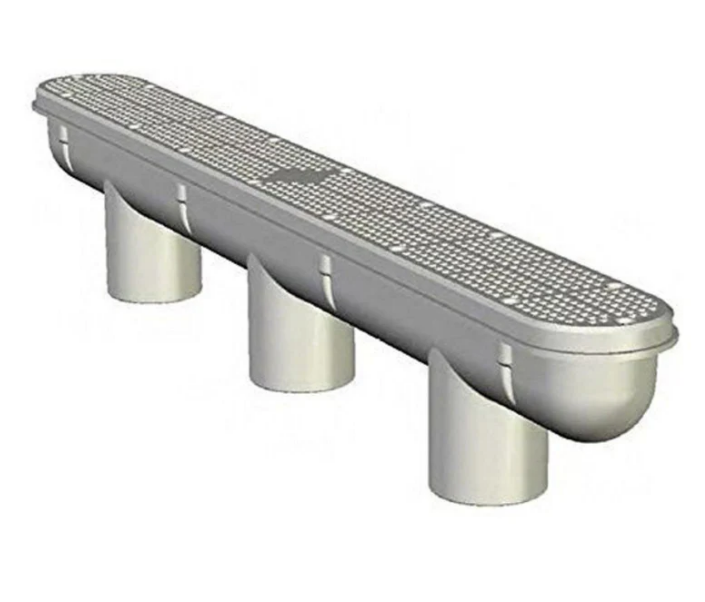

CMP 32” Channel Drain With Body - White

Description:

The CMP 32" VGB Unblockable Channel Drain (25506-320-000) delivers the safety compliance and professional performance pool contractors need for commercial and residential installations. This IAPMO listed drain meets all VGB suction standards and ANSI/APSP-16 2017 requirements, ensuring your projects pass inspections while protecting swimmers with unblockable safety design.

Features:

• 32" VGB unblockable channel drain with white PVC body
• IAPMO listed VGB suction compliance (ANSI/APSP-16 2017 & CPSC)
• High flow rates: up to 298 GPM with 2.5" plumbing
• Integrated water stop prevents plaster separation
• 30-year sump body life with 7-year cover replacement cycle
• Complete kit includes sump body, suction cover, plaster cover, screws, plugs
• 38.79 in² open area for optimal water flow
• Compatible with 2.5" spigot / 2" socket plumbing
• Reinforced PVC construction for durability
• Installation on concrete, gunite, or shotcrete surfaces
• Dimensions: 33.6" overall length x 5.6" width x 10" height
• #8 316 stainless steel screws included for cover attachment
• Protective plaster installation cover included
• UPC: 849640005002
