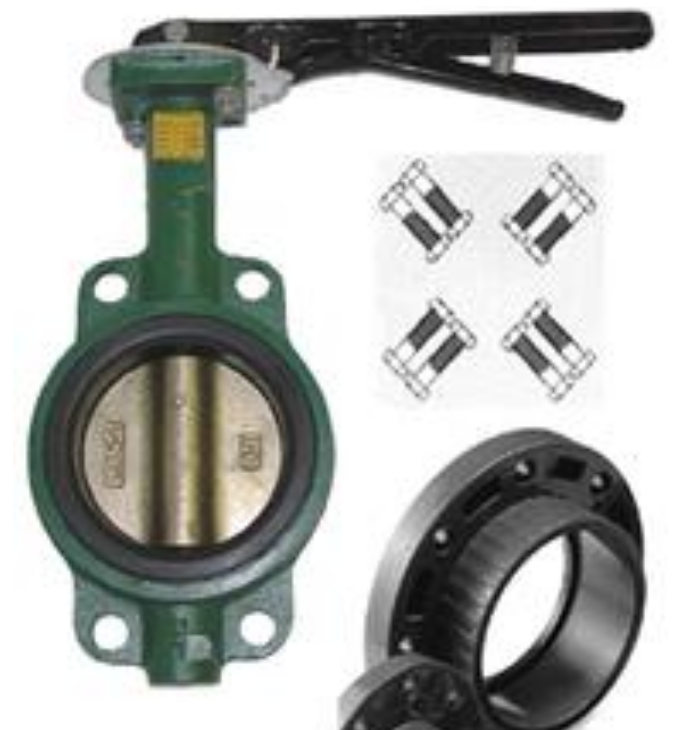

Butterfly Valve 6” With Screw Set

Description:

The 6" Ductile Iron Butterfly Valve Kit delivers everything pool contractors need for professional valve installations in one complete package. This comprehensive kit includes the HBFV Series butterfly valve, PVC Schedule 80 Van Stone flanges, and all necessary hardware for quick, reliable installations on commercial pool systems.

Features:

• Complete installation kit with valve, flanges, and hardware included
• 6" ductile iron butterfly valve with wafer body design
• Two PVC Schedule 80 Van Stone flanges for secure connections
• Lever lock handle with spring-loaded manual control
• Notched throttling plate for precise 10-degree increment adjustments
• Positive bubble-tight shutoff for reliable flow control
• EPDM seats eliminate need for separate flange gaskets
• 420 stainless steel shaft for corrosion resistance
• Bidirectional dead-end capability rated for 250 psi
• Compatible with ANSI 125/150 flanges
• Temperature rated -30°F to 275°F for extreme conditions
• Phenolic backed seats are field replaceable
• Third-party certified no-lead construction
• Complies with MSS SP-67 and API 609 standards
• Complete bolt kit with steel nuts, bolts, and washers
